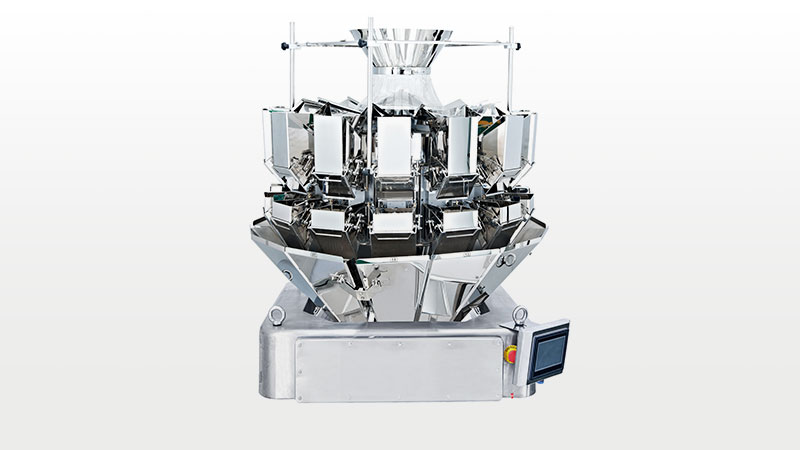

COMBIMAT MULTIHEAD

With more than 800 machines installed, the Combimat multihead has proven itself in a wide variety of industries. Cherry tomatoes, nuts, chewing gum, frozen vegetables, olives, sweets, lettuce, but also bolts, pet food and even play sand and cannabis are processed by these machines every day.

Starting out with standard 8-, 10- and 14-head weighers, the range has now been expanded with mix weighers and twin outlets, and thanks to the many possible project-specific modifications, the Combimat is often the right choice.

Most applications involve weighing consumer packaging such as bags, jars, trays and boxes from 1 to 1000 grams, but that is certainly not all. Please call or email us for the right advice for your next multihead.

MULTIHEAD WEIGHING MACHINE APPLICATIONS

The multihead weigher has a wide range of applications in both the food and non-food industries:

  • Tea Tea
  • Coffee Coffee
  • Rice Rice
  • Seeds Seeds
  • Lettuce Lettuce
  • Biscuits Biscuits
  • Cereals Cereals
  • Pet food Pet food
  • Cherry tomatoes Cherry tomatoes
  • Radishes Radishes
  • Sweets Sweets
  • Snacks Snacks
  • Popcorn Popcorn
  • Croutons Croutons
  • IQF chicken fillets IQF chicken fillets
  • Chicken and fish nuggets Chicken and fish nuggets
  • Nuts Nuts
  • Easter eggs Easter eggs

Want to know more about Combimat weighing machines?

The Combimat weighing machines from Laurijsen WeegAutomaten offer a number of advantages:

  • 10.1″ colour touch screen display in Dutch (also available in German, English and French)
  • Easy to operate for setting speed, weighing weight, opening hours, etc.
  • Storage for 99 programmes
  • Easy to dismantle and clean without tools
  • Synchronisation with all packaging machines
  • Complete stainless steel machine
  • Opening of the bins by means of stepper motors, no compressed air required
  • Load cell under the top cone for starting and stopping the feed
Make an appointment
Download brochure

COMBIMAT MULTIHEAD OPERATION

With the multihead weigher, the product is transported to the storage bins via a central vibrating top cone and vibrating chutes. These empty into the weighing bins, where the high-precision load cells determine the weight. Each weighing hopper contains approximately a quarter of the set weight, and the weigher calculates the best combination that is closest to the target weight. These selected hoppers are opened and come together via the central outlet funnel before landing in the packaging machine.

DESIGN AND OPTIONS

The Combimat multihead weigher is made of stainless steel and is easy to clean because all trays, gutters and chutes can be disassembled and assembled without tools. Thanks to the different available volumes of weighing trays (0.5 l, 1.6 l, 2.5 l and 5 l), a suitable solution can be offered for almost any weight and volume.

Many options are available on the Combimat weighers:

  • 6WL and 15dp dimple plate
  • Collection tray under the weigher for smooth transfer to the packaging machine
  • Chutes at an angle for very sticky products
  • U-shaped chutes for small target weights
  • 60° angle for sticky products (e.g. lettuce)

CONTROL

Operation is entirely via a clear 10.4″ colour touch screen with storage for 99 programmes. The comprehensive software includes weighing filters, e-mark control and password protection.
